Pacific Continental Residence
Pacific Continental Residence
Pacific Continental Residence, El Cabrillo variation, exterior render

Pacific Continental Residence

2027.02R · Design Development · one storey · 26 rooms · 2,122 SF197.1 m²

Render · El Cabrillo
Project 2027.02R

The house

  • 2,122 SF197.1 m²room area, each variation
  • 26rooms, all on L1
  • 4 · 3bedrooms · bathrooms
  • 3façade variations
Client
Autodesk
Status
Design Development
Issued
April 2, 2026
Organization
THE FOOTHILL CATALOG FOUNDATION

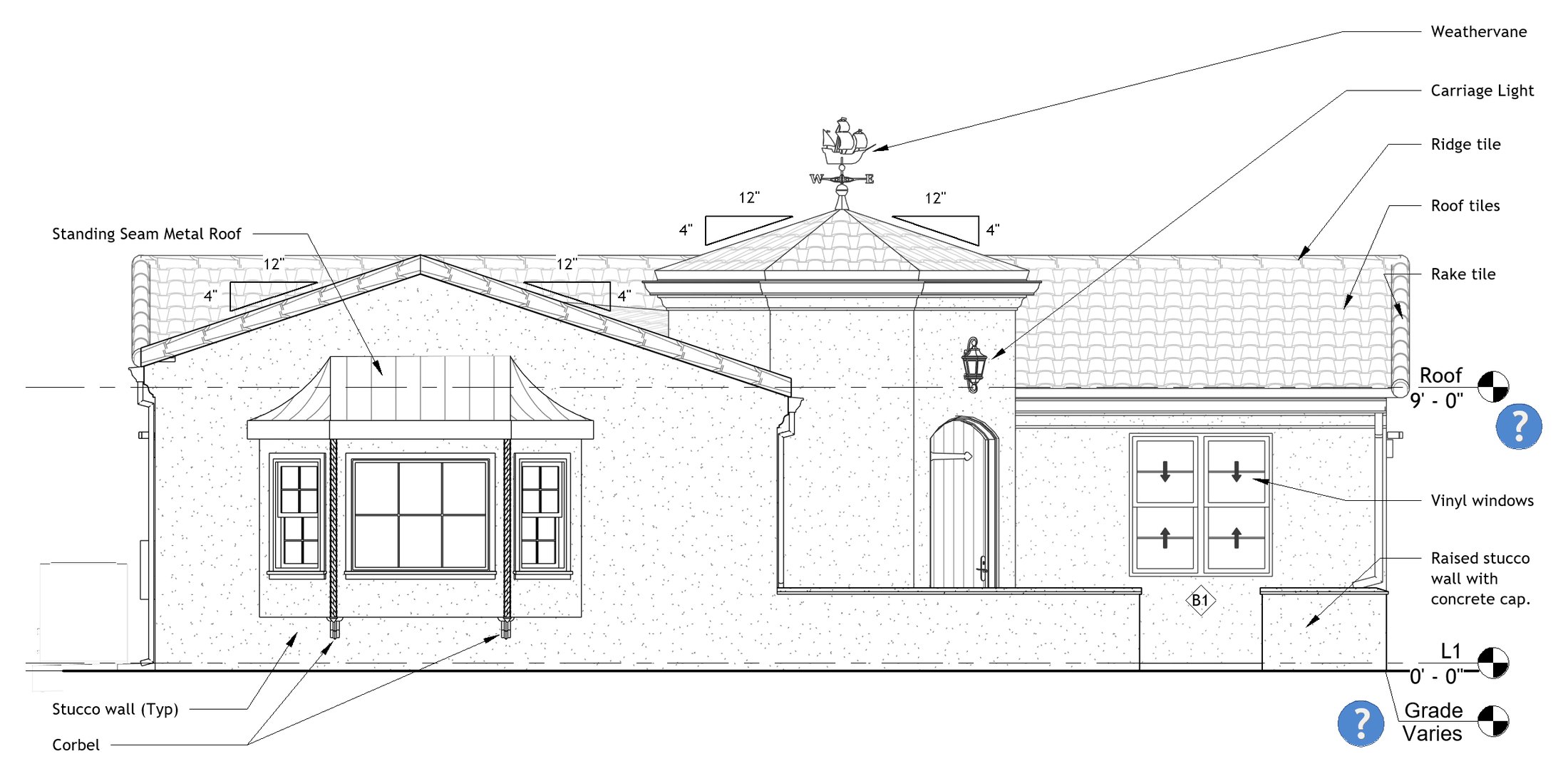

Turret - Tall13' - 4"4.06 m · not a storeyRoof9' - 0"2.74 mL10' - 0"0.00 mGrade-0' - 3"-0.08 m

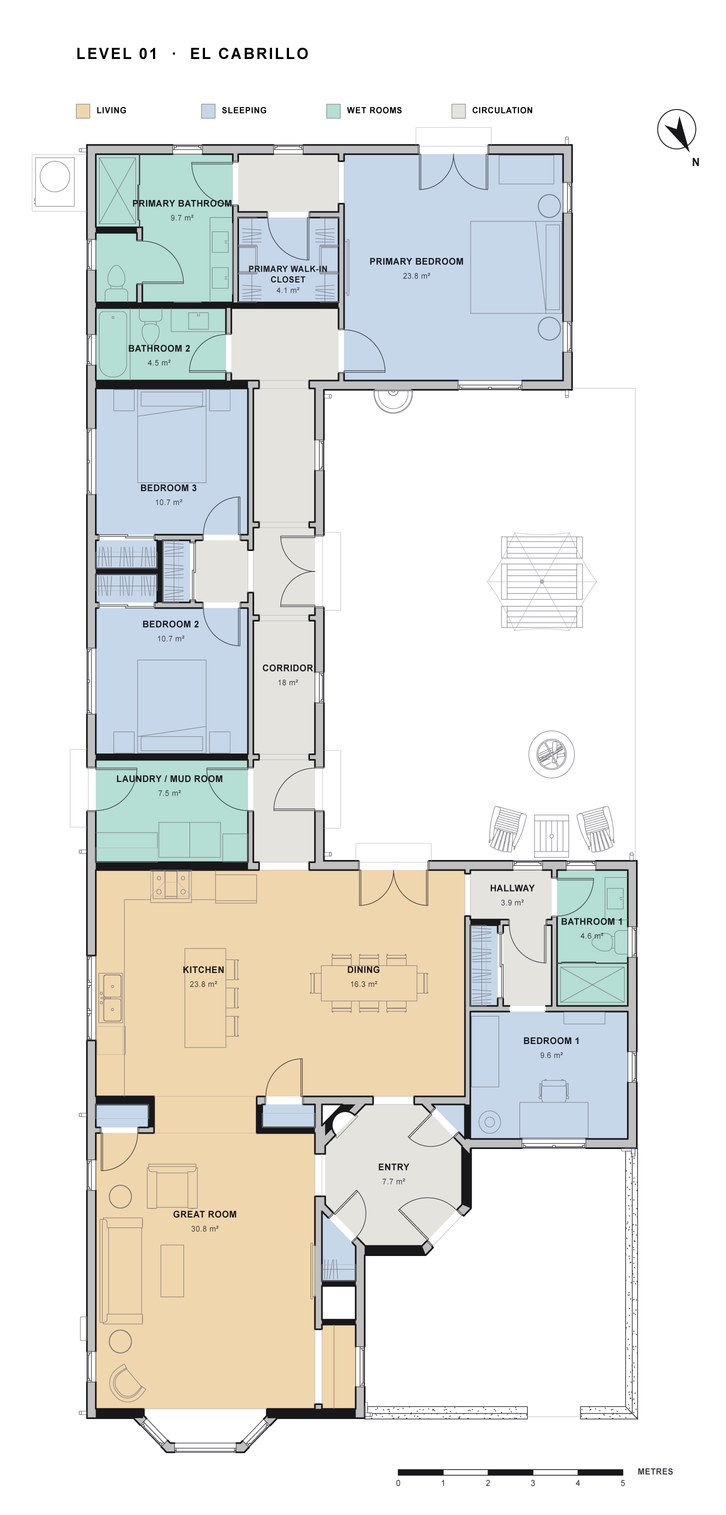

Coloured floor plan, Level 01, El Cabrillo
Level 01 · El CabrilloColour plan
Same camera

From model to image

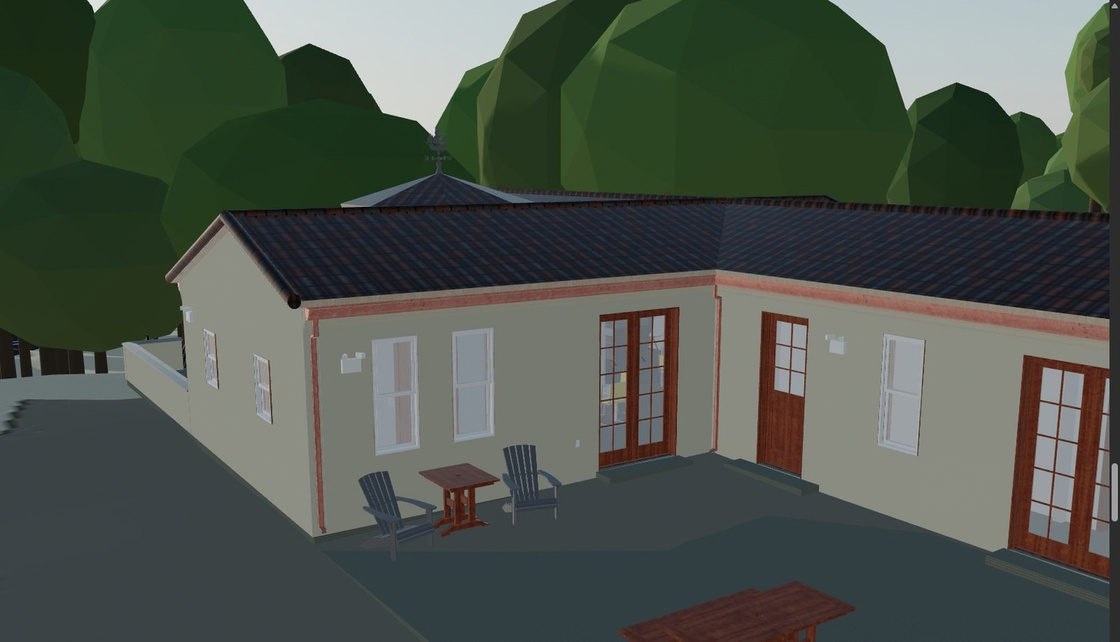

Render from the same camera Revit model view Revit model viewRender

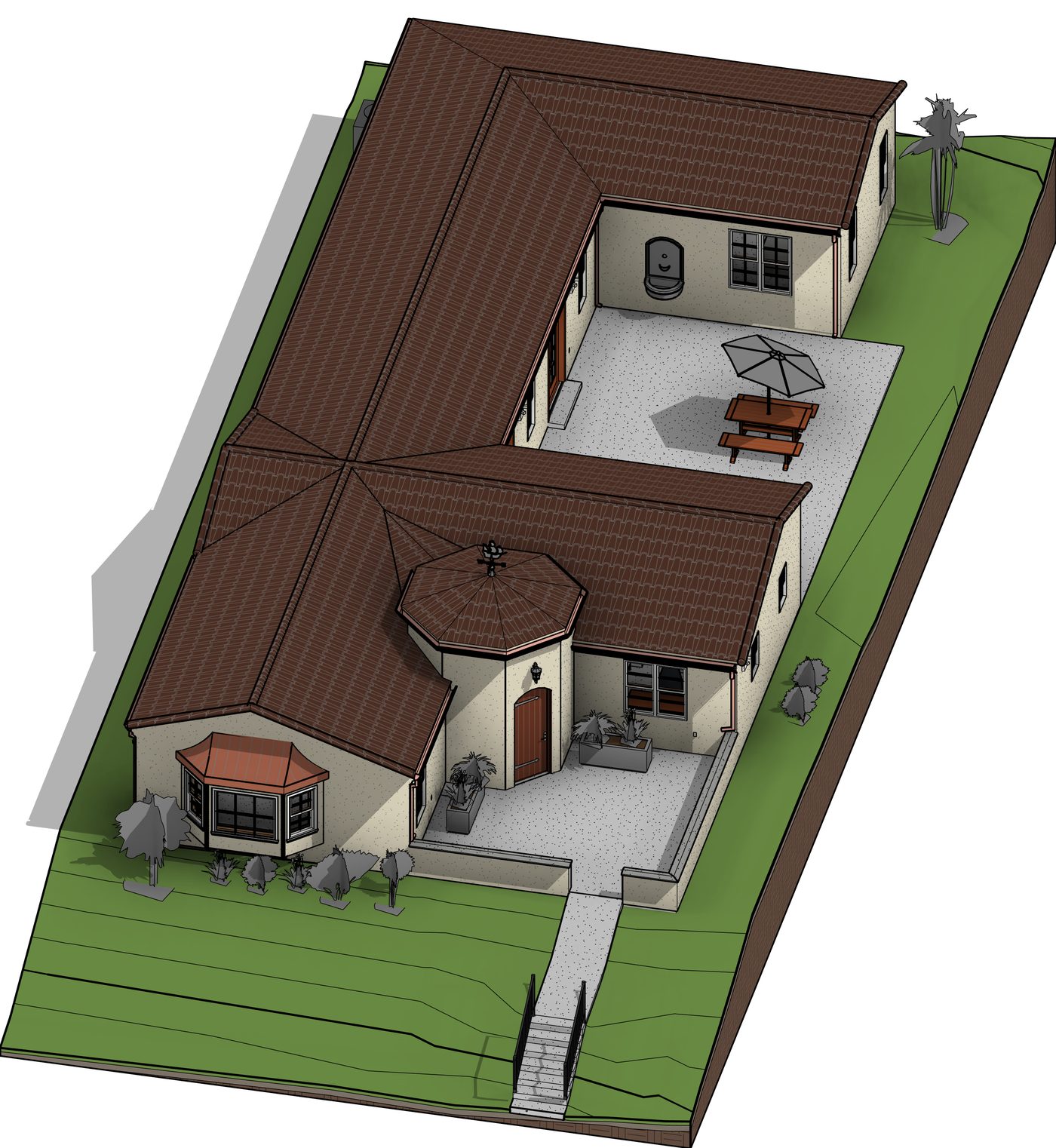

Design option set “Variations”

Three variations, one plan

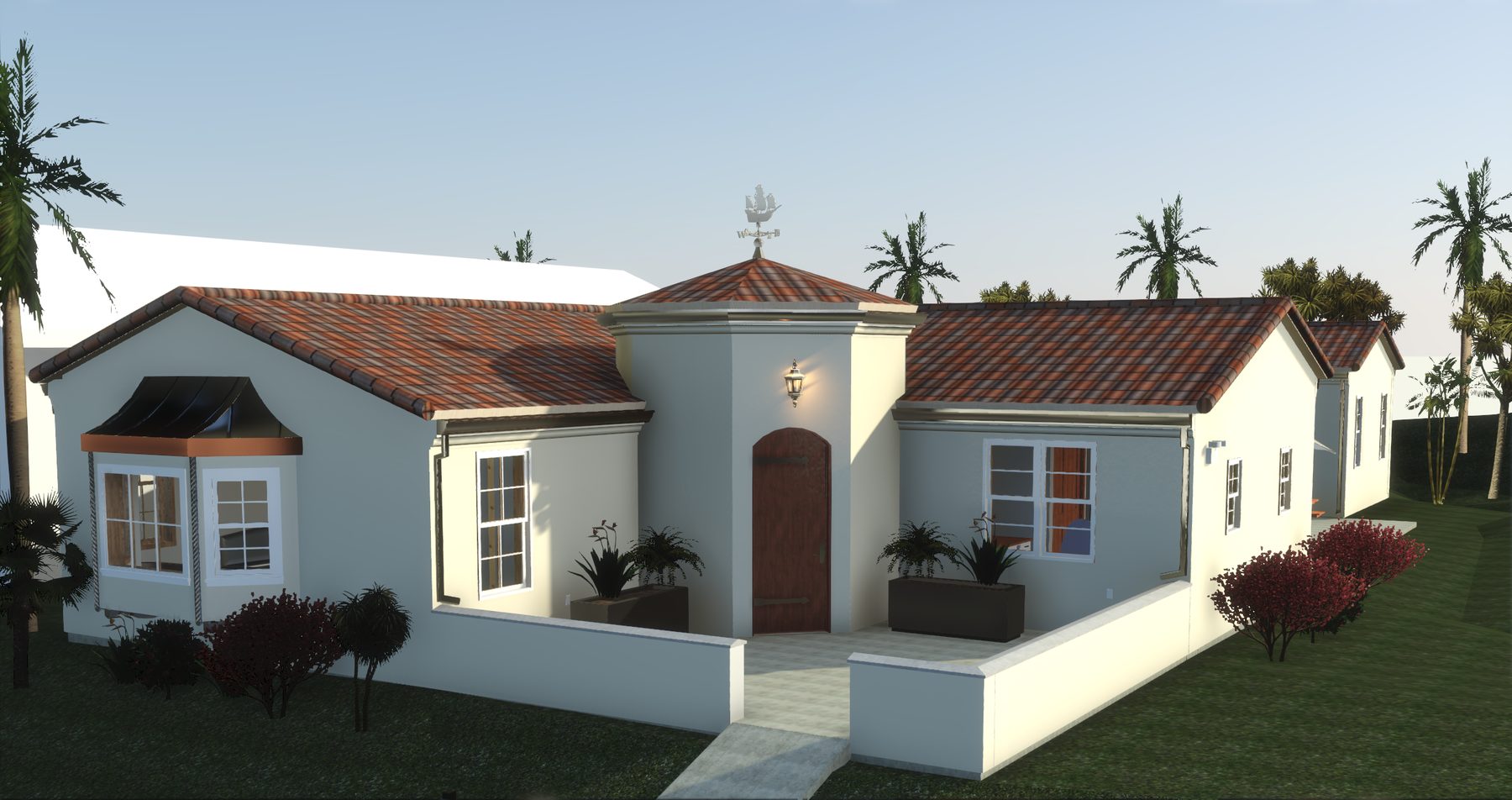

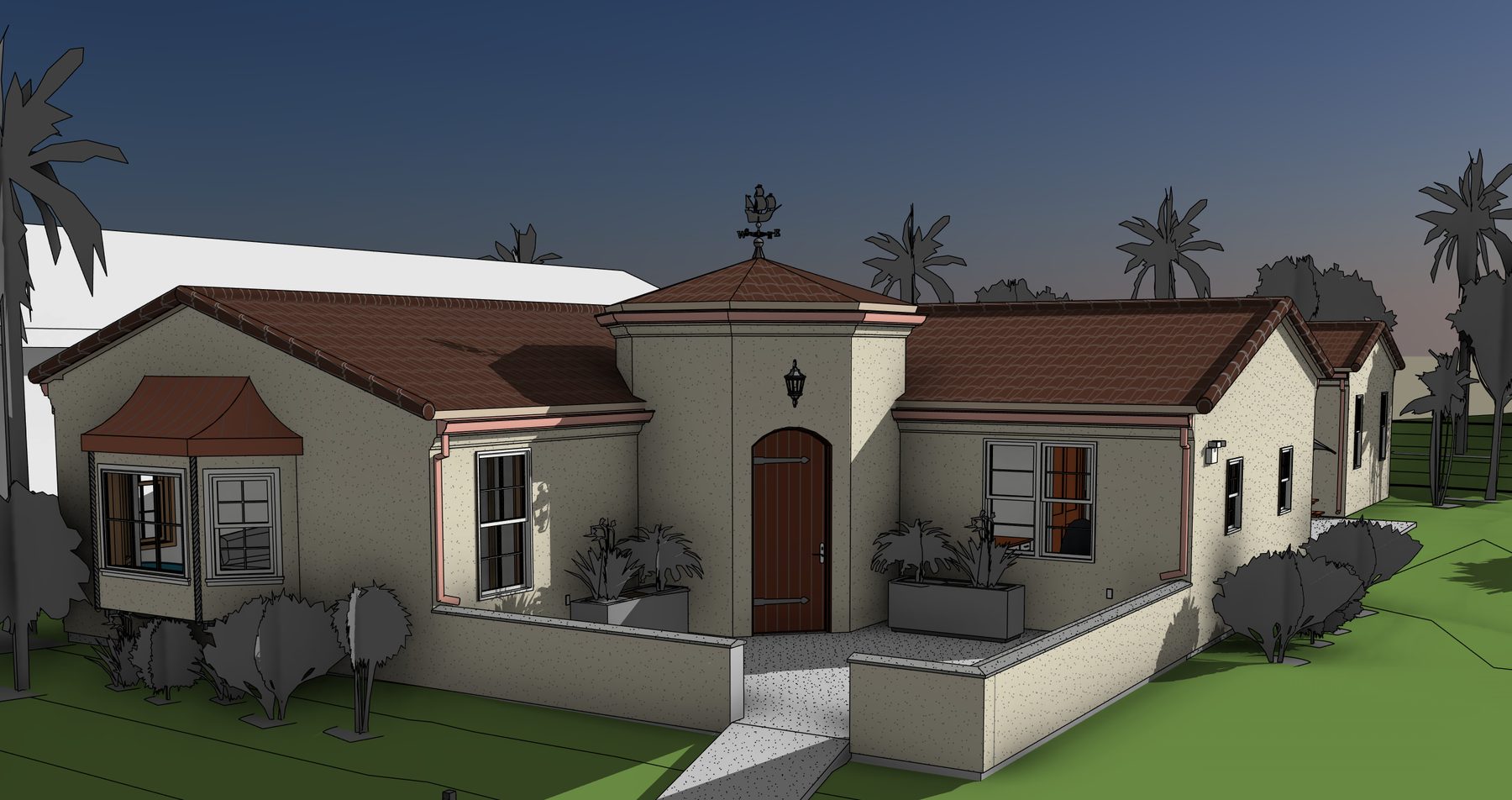

Camera Front (El Cabrillo) RealisticPrimary option · sheet MA0.1
Window Schedule (El Cabrillo)
23windows · 8 types
MarkW × HTypeHeadNo.
A42' - 2" × 3' - 0"Double Hung6' - 8"6
A72' - 2" × 5' - 2"Double Hung8' - 0"8
A102' - 10" × 5' - 2"Double Hung7' - 6"1
A112' - 2" × 3' - 8"Double Hung6' - 8"2
B14' - 8" × 4' - 8"Double Double Hung7' - 6"1
B44' - 8" × 5' - 2"Double Double Hung8' - 0"3
C26' - 0" × 4' - 8"Triple Double Hung8' - 0"1
E44' - 6" × 3' - 8"Fixed6' - 8"1

Vinyl, painted, ½" double pane, every type.

Same camera, two options

Compare variations

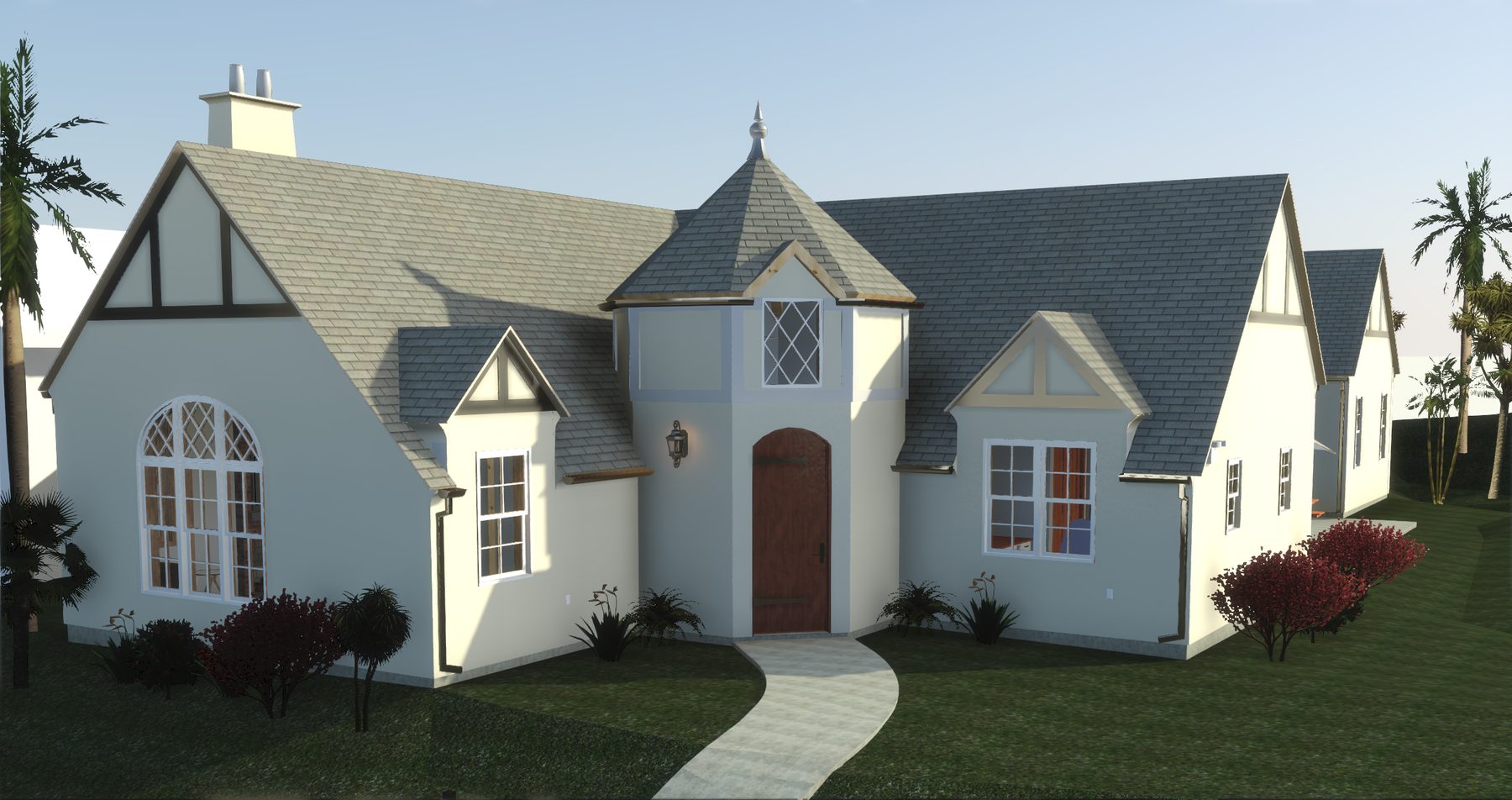

The Charmant front, realistic El Cabrillo front, realistic El CabrilloThe Charmant

Camera Front, realistic, from each design option. Same camera in all three.

Room Finish Schedule

Rooms

05 Bedroom 115A Primary Walk-in Closet07 Bathroom 105A Closet03 Dining09 Bedroom 211A Closet12A Closet16 Primary Bathroom14 Primary Bedroom10 Hallway02 Great Room04 Kitchen04A Closet01 Entry06 Hallway08 Laundry / Mud Room12 Bedroom 313 Bathroom 211 Corridor02B Closet10A Closet15 Hallway02A Nook01A Closet01B ClosetBedroom 1104 SF9.6 m²Primary Walk-in Closet44 SF4.1 m²Bathroom 150 SF4.6 m²05ADining175 SF16.3 m²Bedroom 2115 SF10.7 m²11A12APrimary Bathroom105 SF9.7 m²Primary Bedroom256 SF23.8 m²10Great Room331 SF30.8 m²Kitchen256 SF23.8 m²04AEntry83 SF7.7 m²Hallway42 SF3.9 m²Laundry / Mud Room80 SF7.5 m²Bedroom 3115 SF10.7 m²Bathroom 249 SF4.5 m²Corridor193 SF18.0 m²02B10A1502A01A01B010 ft

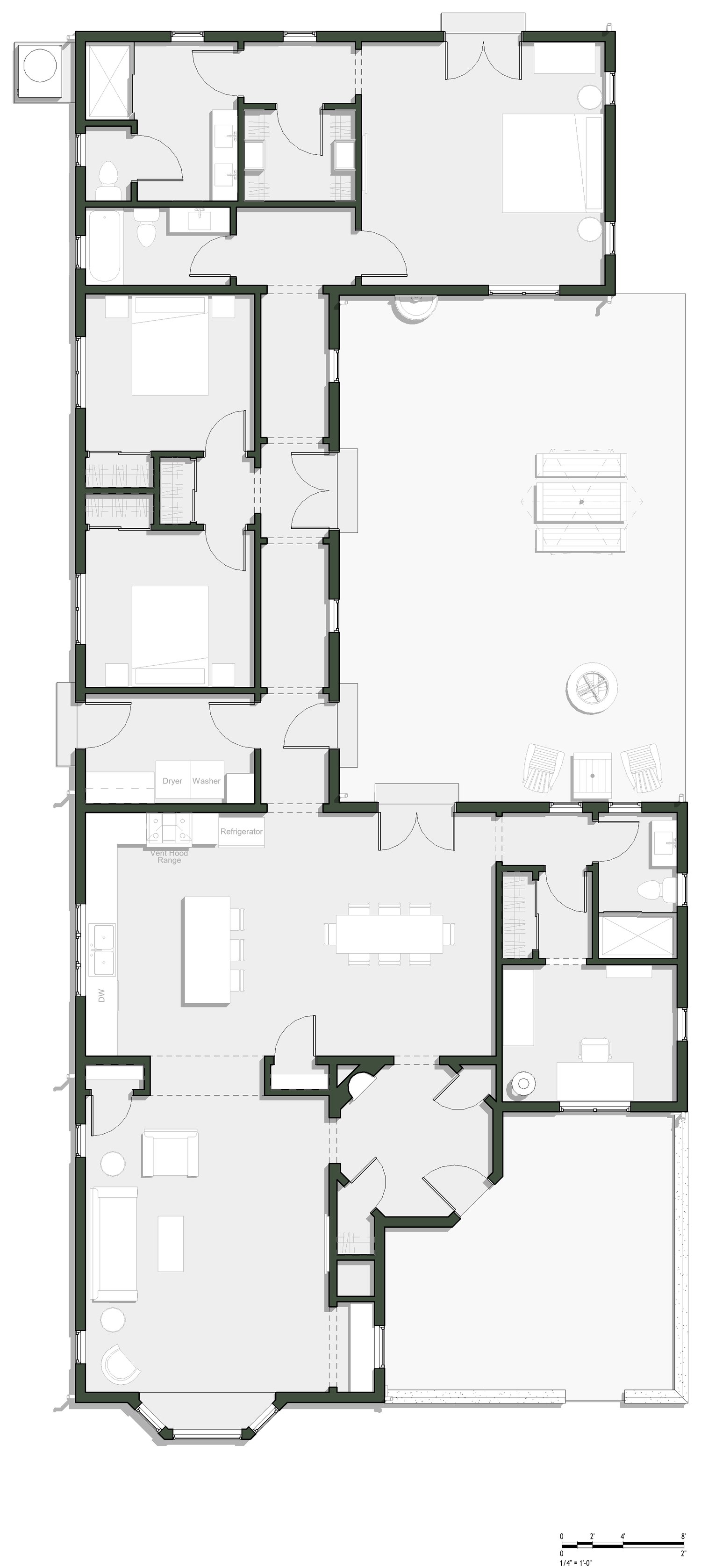

Level 01 · El Cabrillo · drawn from the model's rooms and wallsHover or tap a room
Size
01Entry83 SF7.7 m²10'-0"W x 10'-0"L11' - 9"3.58 m
01ACloset9 SF0.8 m²2'-6"W x 4'-11"L8' - 0"2.44 m
01BCloset3 SF0.3 m²2'-5"W x 2'-5"L8' - 0"2.44 m
02Great Room331 SF30.8 m²16'-0"W x 22'-1"L11' - 0"3.35 m
02ANook15 SF1.4 m²2'-6"W x 5'-11"L8' - 0"2.44 m
02BCloset6 SF0.6 m²3'-10"W x 1'-7"L9' - 0"2.74 m
03Dining175 SF16.3 m²10'-11"W x 16'-0"L11' - 0"3.35 m
04Kitchen256 SF23.8 m²16'-0"W x 16'-0"L11' - 0"3.35 m
04ACloset6 SF0.6 m²3'-10"W x 1'-7"L9' - 0"2.74 m
05Bedroom 1104 SF9.6 m²11'-6"W x 9'-0"L9' - 0"2.74 m
05ACloset11 SF1.1 m²2'-0"W x 5'-9"L9' - 0"2.74 m
06Hallway42 SF3.9 m²5'-11"W x 9'-7"L9' - 0"2.74 m
07Bathroom 150 SF4.6 m²5'-2"W x 9'-7"L9' - 0"2.74 m
08Laundry / Mud Room80 SF7.5 m²11'-1"W x 7'-3"L9' - 0"2.74 m
09Bedroom 2115 SF10.7 m²11'-1"W x 10'-4"L9' - 0"2.74 m
10Hallway17 SF1.6 m²3'-10"W x 4'-5"L9' - 0"2.74 m
10ACloset9 SF0.8 m²2'-0"W x 4'-5"L9' - 0"2.74 m
11Corridor193 SF18.0 m²7'-10"W x 39'-2"L9' - 0"2.74 m
11ACloset9 SF0.8 m²4'-6"W x 2'-0"L9' - 0"2.74 m
12Bedroom 3115 SF10.7 m²11'-1"W x 10'-4"L9' - 0"2.74 m
12ACloset9 SF0.8 m²4'-6"W x 2'-0"L9' - 0"2.74 m
13Bathroom 249 SF4.5 m²9'-6"W x 5'-2"L9' - 0"2.74 m
14Primary Bedroom256 SF23.8 m²16'-0"W x 16'-0"L11' - 0"3.35 m
15Hallway30 SF2.8 m²7'-4"W x 4'-1"L9' - 0"2.74 m
15APrimary Walk-in Closet44 SF4.1 m²7'-4"W x 6'-0"L9' - 0"2.74 m
16Primary Bathroom105 SF9.7 m²10'-0"W x 10'-6"L9' - 0"2.74 m
26 rooms2,122 SF197.1 m²

Every room: floor LVP · base Wood Base · wall Paint · ceiling GWB. Size is the schedule's Comments field.

El Cabrillo

Inside

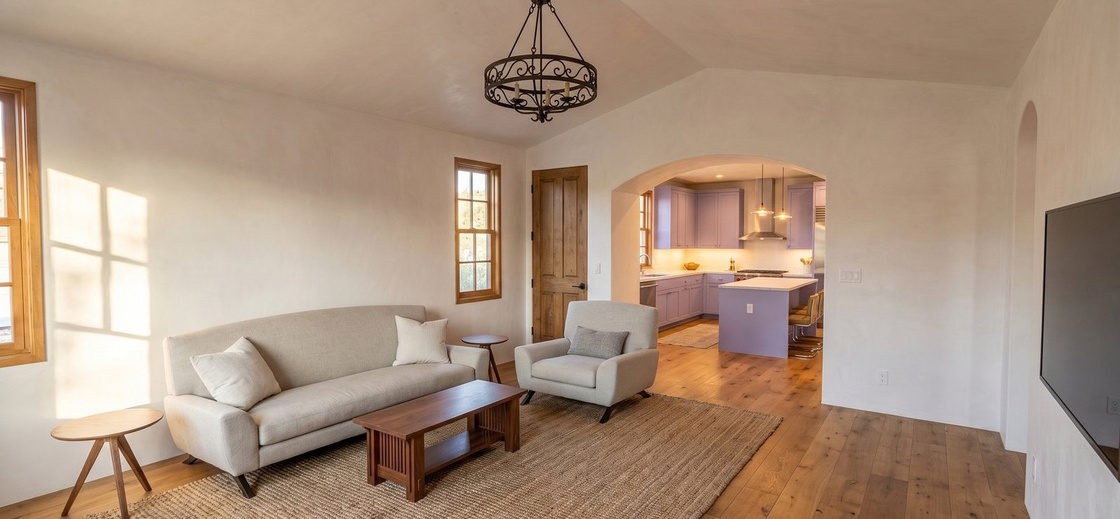

Great RoomRender

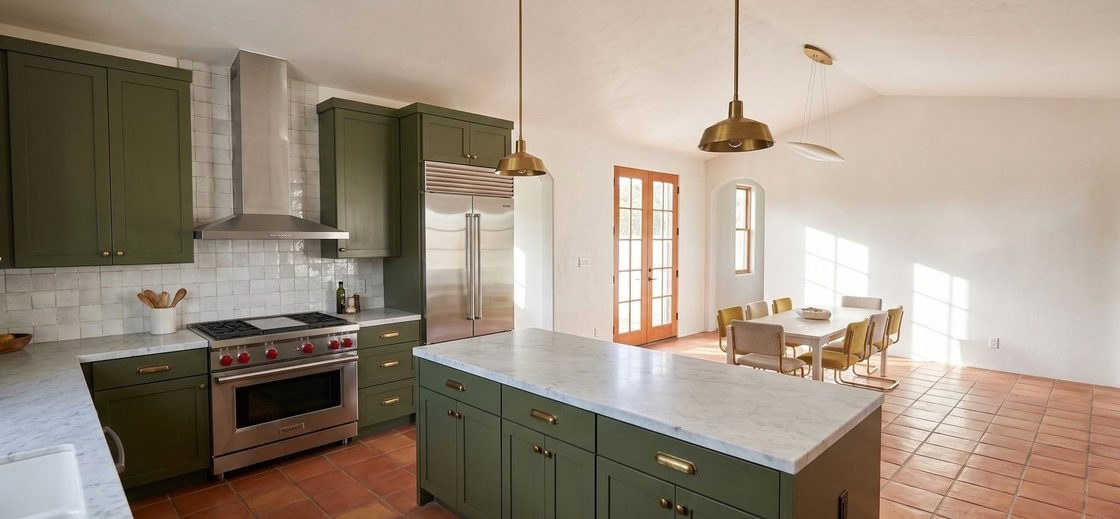

KitchenRender
Primary BedroomRender
EntryRender

Model cameras

Revit camera views · scroll →

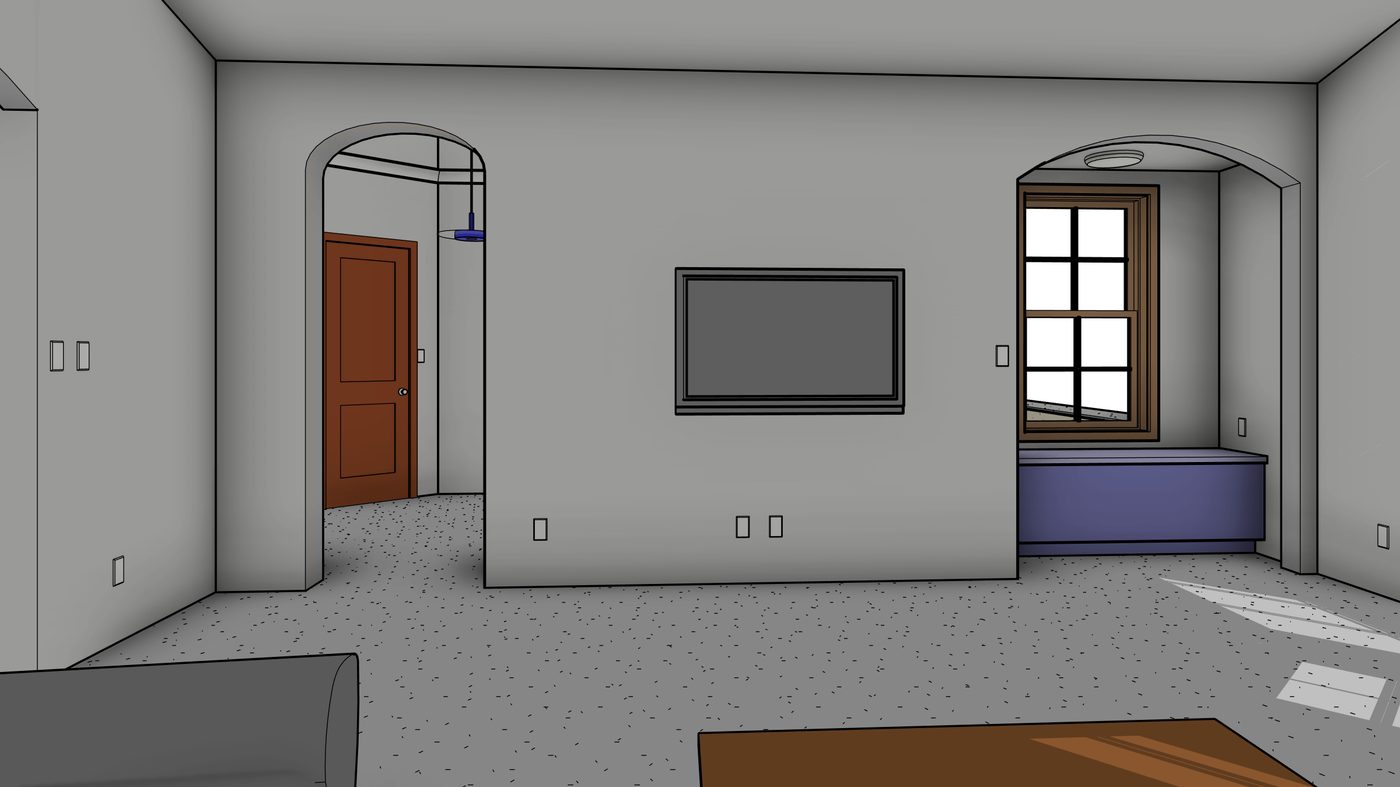

Camera - Interior - Great Room - Looking at TV Wall (All)

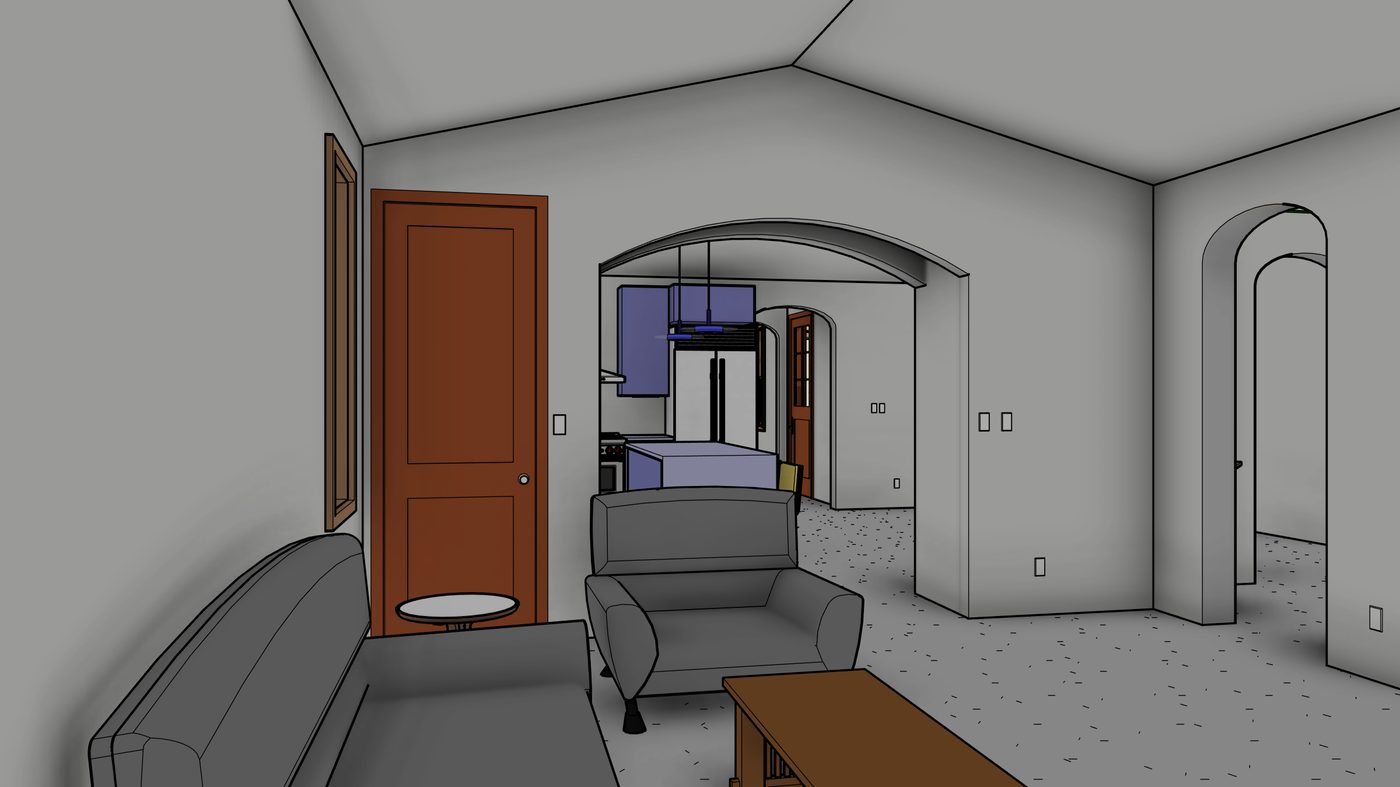

Camera - Interior - Great Room - Looking toward Kitchen (All)

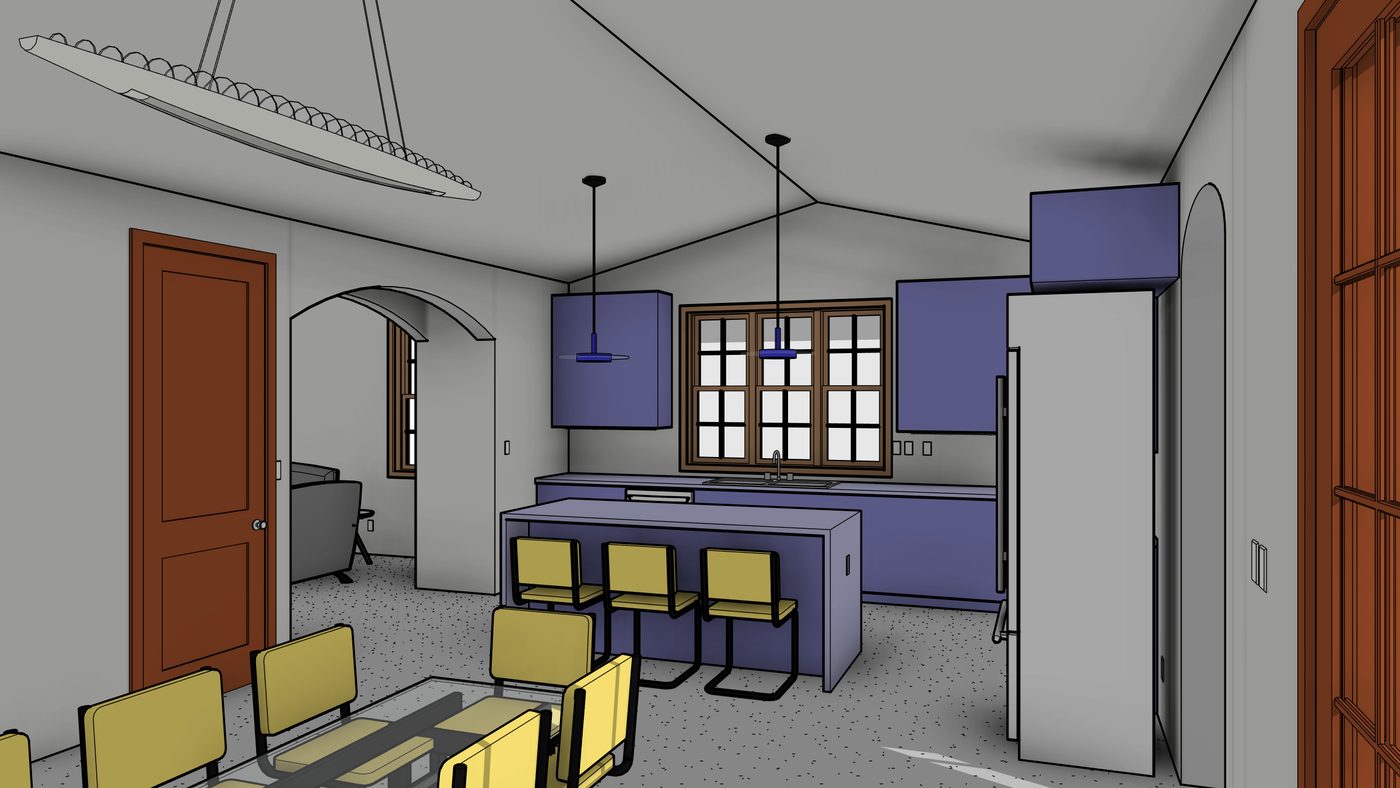

Camera - Dining looking toward Kitchen (All)

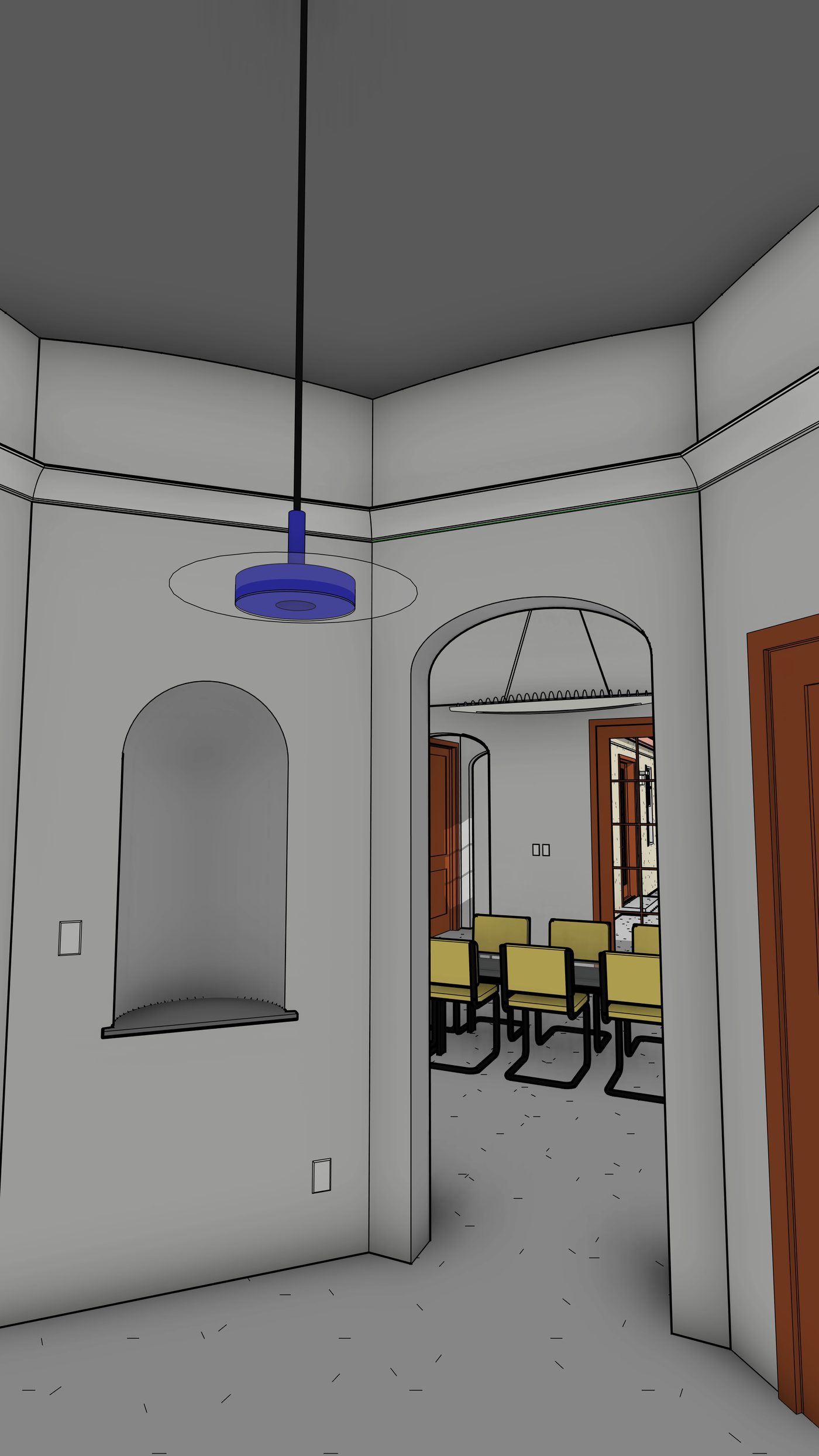

Camera at Turret Interior (El Cabrillo & The Dover)

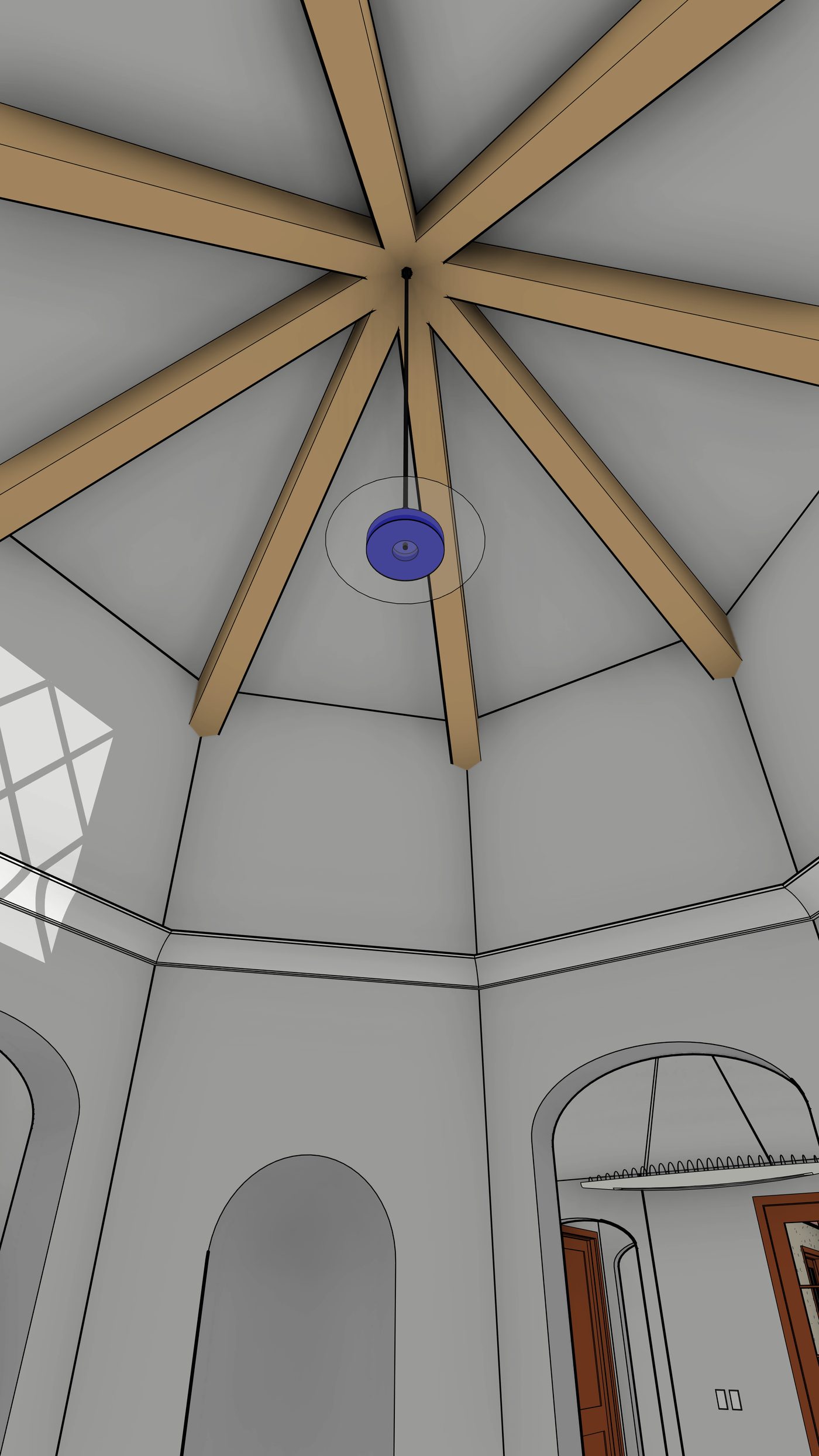

Camera at Turret Interior looking Up (The Charmant)

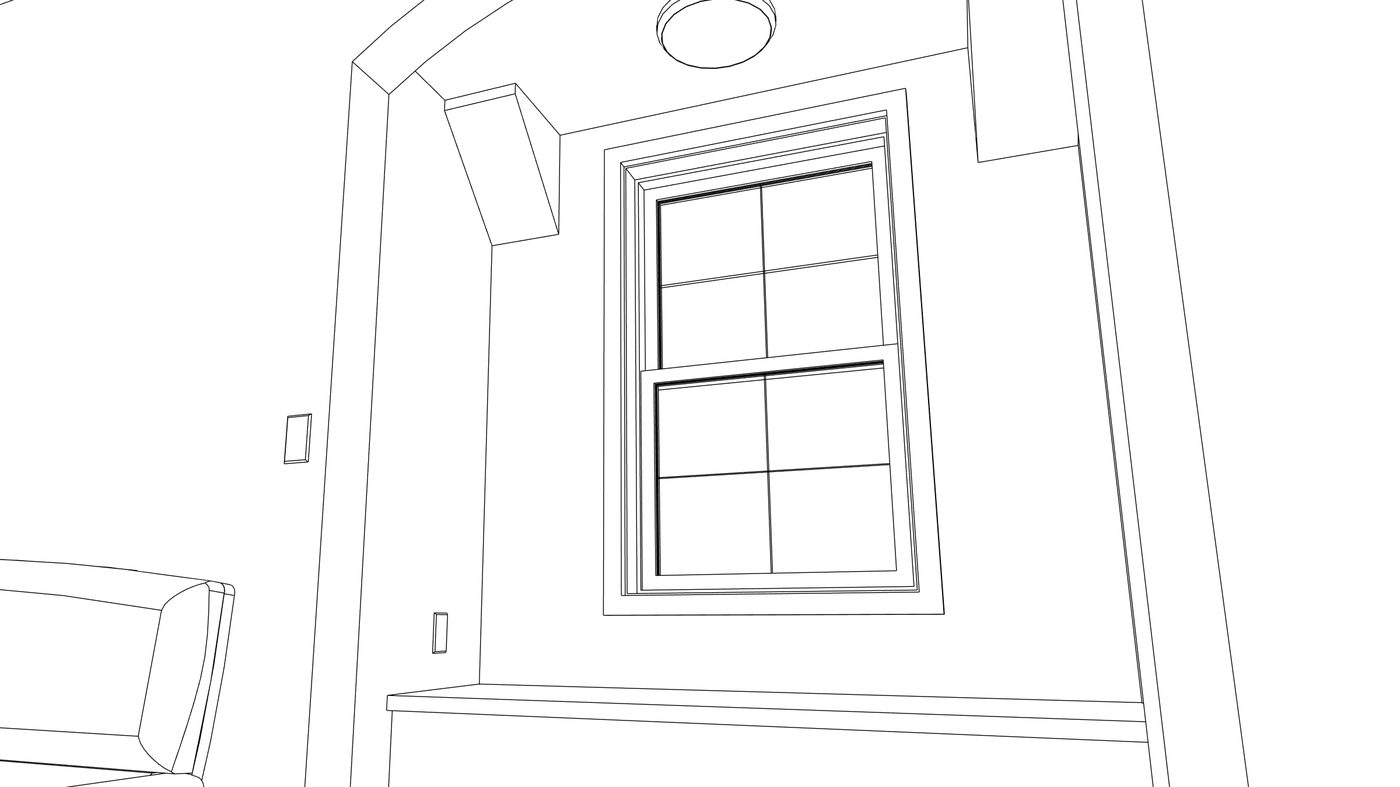

Camera - Nook Great Room Dormer (All)

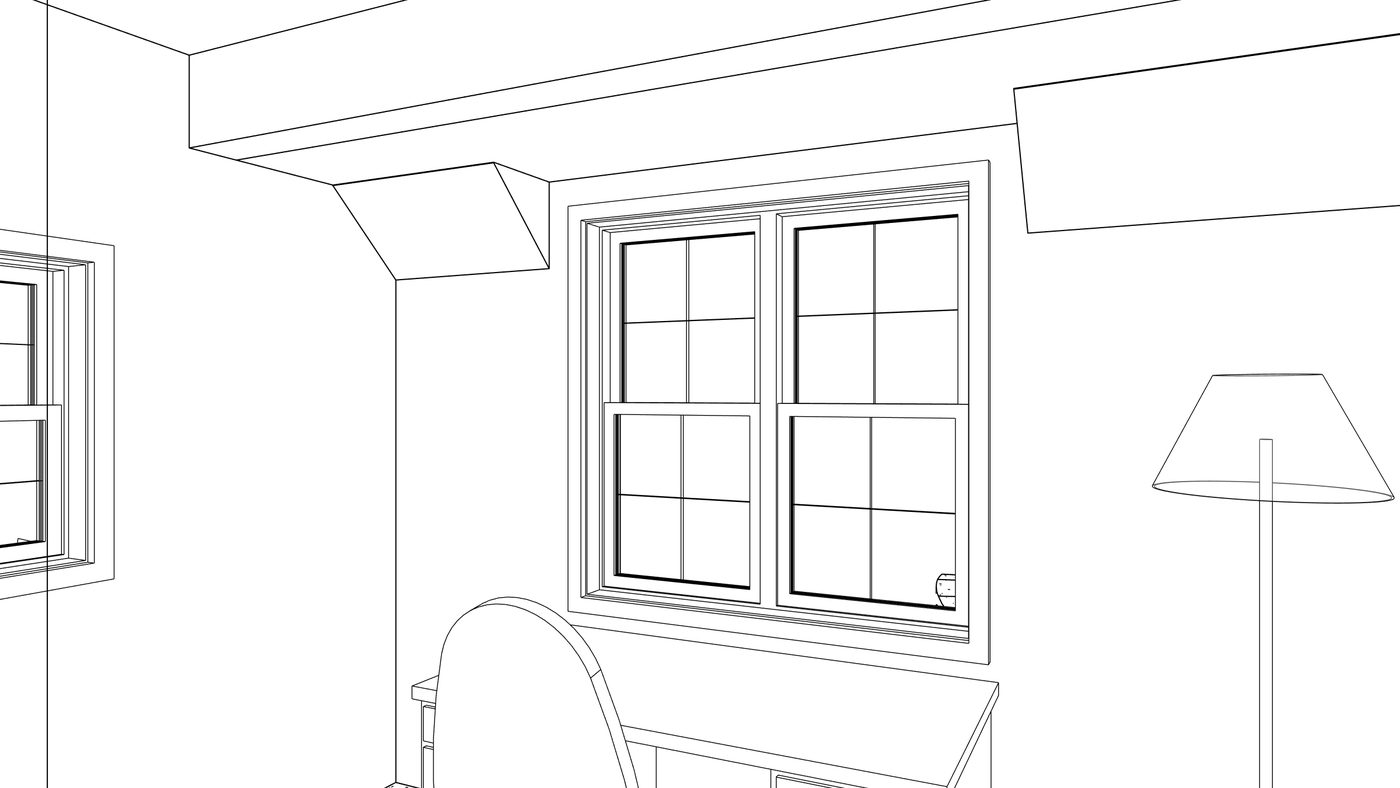

Camera - Bedroom 1 Dormer (The Charmant & The Dover)
Wall, floor and roof types

Build-ups

Wall type

Exterior - Stucco on Wood Stud

    Pick any type below to see its layers here, drawn to scale.

    Exterior - Stucco on Wood Stud

    0' - 7 7/8"200 mm
    1. Wall Texture, StuccoFinish 17/8"22 mm
    2. Metal LathThermal/Air Layer3/8"10 mm
    3. Vapor RetarderMembrane Layer0"0 mm
    4. Plywood, SheathingSubstrate1/2"13 mm
    5. Softwood, LumberStructure5 1/2"140 mm
    6. Vapor RetarderMembrane Layer0"0 mm
    7. Gypsum Wall BoardFinish 25/8"16 mm

    Exterior - Stucco on Wood Stud (Stucco) w Cap

    0' - 9"229 mm
    1. Wall Texture, StuccoFinish 17/8"22 mm
    2. Metal LathThermal/Air Layer3/8"10 mm
    3. Vapor RetarderMembrane Layer0"0 mm
    4. Plywood, SheathingSubstrate1/2"13 mm
    5. Softwood, LumberStructure5 1/2"140 mm
    6. Plywood, SheathingSubstrate1/2"13 mm
    7. Vapor RetarderMembrane Layer0"0 mm
    8. Metal LathThermal/Air Layer3/8"10 mm
    9. Wall Texture, StuccoFinish 17/8"22 mm

    Exterior - Sheathing ONLY on Wood Stud

    0' - 6 5/8"168 mm
    1. Plywood, SheathingSubstrate1/2"13 mm
    2. Softwood, LumberStructure5 1/2"140 mm
    3. Vapor RetarderMembrane Layer0"0 mm
    4. Gypsum Wall BoardFinish 25/8"16 mm

    Exterior - Stucco on Substrate

    0' - 1 3/4"44 mm
    1. Wall Texture, StuccoFinish 17/8"22 mm
    2. Metal LathThermal/Air Layer3/8"10 mm
    3. Vapor RetarderMembrane Layer0"0 mm
    4. Plywood, SheathingSubstrate1/2"13 mm

    Exterior - Stucco ONLY

    0' - 1 1/4"32 mm
    1. Wall Texture, StuccoFinish 17/8"22 mm
    2. Metal LathThermal/Air Layer3/8"10 mm
    3. Vapor RetarderMembrane Layer0"0 mm

    Foundation - 1'-6" Concrete

    1' - 6"457 mm
    1. Concrete, Cast-in-Place grayStructure1' - 6"457 mm

    Interior - 4 3/4" Partition - WD Stud GWB Both Sides

    0' - 4 3/4"121 mm
    1. Gypsum Wall BoardFinish 25/8"16 mm
    2. Softwood, LumberStructure3 1/2"89 mm
    3. Gypsum Wall BoardFinish 25/8"16 mm

    Interior - 6 3/4" Partition - WD Stud GWB Both Sides

    0' - 6 3/4"171 mm
    1. Gypsum Wall BoardFinish 25/8"16 mm
    2. Softwood, LumberStructure5 1/2"140 mm
    3. Gypsum Wall BoardFinish 25/8"16 mm

    Interior - 6" Shaft - WD Stud GWB 1 Side

    0' - 6 1/8"156 mm
    1. Softwood, LumberStructure5 1/2"140 mm
    2. Gypsum Wall BoardFinish 25/8"16 mm

    Interior - 4 1/8" Shaft - WD Stud GWB 1 Side

    0' - 4 1/8"105 mm
    1. Softwood, LumberStructure3 1/2"89 mm
    2. Gypsum Wall BoardFinish 25/8"16 mm
    SECTION

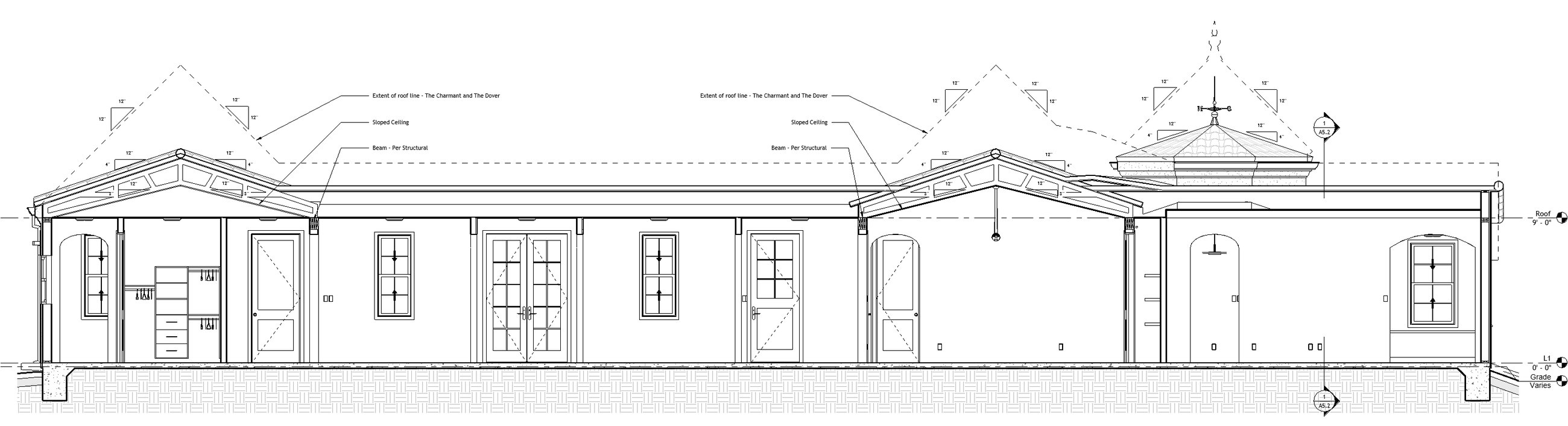

    Section Longitudinal (All)

    Door Schedule

    Doors

    MarkW × HTypeHeadJambSillFire ratingHardwareFrom room
    1003' - 0" × 8' - 0"A0----2/A3.320AA01 · Entry
    1015' - 0" × 8' - 0"B0----2/A3.320BB03 · Dining
    1023' - 0" × 8' - 0"C0----2/A3.320BB11 · Corridor
    1035' - 0" × 8' - 0"B0----2/A3.320BB11 · Corridor
    1045' - 0" × 8' - 0"B0----2/A3.320CC14 · Primary Bedroom
    1053' - 0" × 8' - 0"C0----2/A3.320CC—
    D012' - 4" × 7' - 0"D11/A3.3----NRDD01B · Closet
    D022' - 4" × 7' - 0"D11/A3.4----NRDD01A · Closet
    D032' - 8" × 8' - 0"D21/A3.3----NRDD04A · Closet
    D042' - 8" × 8' - 0"D21/A3.3----NRDD02B · Closet
    D052' - 8" × 8' - 0"D21/A3.3----NREE06 · Hallway
    D062' - 8" × 8' - 0"D21/A3.3----NREE06 · Hallway
    D074' - 6" × 8' - 0"E11/A3.3----NRFF06 · Hallway
    D083' - 0" × 8' - 0"D31/A3.3----NREE11 · Corridor
    D092' - 8" × 8' - 0"D21/A3.3----NREE10 · Hallway
    D104' - 0" × 8' - 0"E21/A3.3----NRFF11A · Closet
    D114' - 0" × 8' - 0"E21/A3.3----NRFF10A · Closet
    D122' - 8" × 8' - 0"D21/A3.3----NREE10 · Hallway
    D134' - 0" × 8' - 0"E21/A3.3----NRFF12A · Closet
    D142' - 8" × 8' - 0"D21/A3.3----NREE11 · Corridor
    D153' - 0" × 8' - 0"D31/A3.3----NREE11 · Corridor
    D163' - 0" × 8' - 0"D31/A3.3----NRDD15 · Hallway
    D173' - 0" × 8' - 0"D31/A3.3----NREE15 · Hallway
    D183' - 0" × 8' - 0"D31/A3.3----NREE16 · Primary Bathroom

    Every door: wood, painted, 1 3/8" thick, painted wood frame.
